Imaging systems built around the mission.
Explore electro-optic and imaging capabilities for Space, Air, Land and Sea. Each segment combines the application context, sensing technologies, system capabilities and relevant Analinear products.
One imaging ecosystem
From sensing to integrated system
Choose the segment to explore its operating context and suitable technologies. Product fit depends on the required range, field of view, environmental conditions, platform constraints and interfaces; the same product may support more than one segment.
Short-wave infrared imaging for specialized low-light and industrial applications.
Cooled thermal imaging for long-range and high-performance applications.
Thermal imaging for day/night surveillance and industrial use.
Segment explorer
Find the right application pathway
The following pages retain the existing segment-led approach and extend it with relevant products. Product highlights below are based on available product descriptions; Space-specific product assignments should be confirmed against the mission and payload requirements.
Segment 01
Space imaging
Space programmes typically place strong emphasis on payload size, mass, power, optical performance, thermal stability, data handling and platform interfaces. Select a camera core or imaging approach based on the mission’s spectral band, scene conditions and integration needs.
Payload integrationVisible / IR sensingEmbedded processingCustom engineering
Align detector format, spectral band and optics with the target scene and payload envelope.
Consider SWIR, MWIR or LWIR core technologies where supported by mission requirements.
Define power, data, control, mechanical and thermal interfaces early in the design process.
Relevant technology pathways
Confirm space qualification and environmental requirements during scoping.
Mission integration
Custom solution

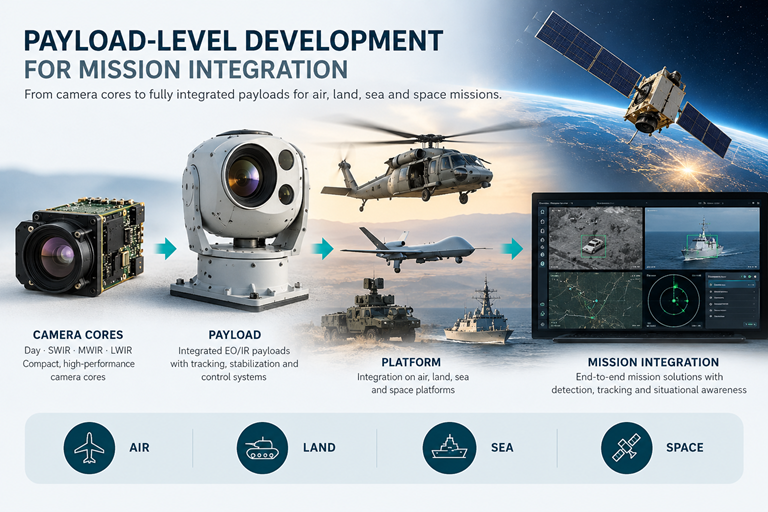

Payload-level development
Define detector, optics, electronics, processing and platform interfaces as a single engineering workflow.
- Requirements-led selection
- Optical and mechanical integration
- Interface and data-flow planning
Space-specific qualification, radiation tolerance, vacuum/thermal-vacuum performance and launch qualification are not asserted here; these should be confirmed against the project specification.
Segment 02
Airborne imaging & tracking
Airborne systems can require low size, weight and power, stable imagery, fast target acquisition, long-range optics and dependable video/control links. The available product descriptions include aerial surveillance and fixed-wing UAV use cases.
Aerial surveillanceOptical trackingDay / night imagingVideo & control links
Autonomous scan, detection, cueing and target tracking where supported by the selected system.
Consider mechanical envelope, payload mounting, power, video output and control protocol.
Choose visible, low-light, SWIR, MWIR or LWIR technologies according to mission needs.
Featured products
Products can be featured in multiple segments when appropriate.
Multi-sensor system
Short-range multi-sensor
LD-100
Modular multi-sensor system described for short-range aerial security and surveillance.
- Autonomous scan, detect and warn
- Target tracking and position-to-cue
- UAV, marine deck and ground mounting use cases
Optical tracking
Optical tracking system
Eagle PT 700
Day camera and tracker system for optical tracking and perimeter surveillance.
- 34× optical zoom
- 20–700 mm f/3 optics
- Detection of up to four objects
- Ethernet video/control interface
Thermal imaging
Thermal camera cores
Viper / Viper-330
Cooled MWIR cameras for surveillance and airborne or industrial applications.
- Viper: 640 × 512, 3.7–4.8 µm
- Viper-330: 640 × 512, 3–5 µm
- Camera Link or HD-SDI options vary by model
Segment 03
Land security & surveillance
Land deployments range from protected-site monitoring to inland/coastal installations and industrial applications. Solutions can combine visible and thermal imagery, optical tracking, cueing, detection and integration into wider security systems.
Perimeter securityBorder surveillanceIndustrial monitoringMulti-sensor integration
Observe protected spaces and support visual confirmation of potential targets.
Support scan, detect, warn, position-to-cue and tracking workflows where available.
Combine visible and infrared channels based on scene conditions and required viewing range.
Featured products
Datasheet links open product documentation.
Perimeter security
Visible surveillance
CRAD-0
Scalable, cost-effective solution for perimeter security of high-value sites.
- Visible channel and IR illumination
- Autonomous scan, detect and warn
- Target tracking and azimuth/elevation control
- ONVIF-S and system integration options
Dual-channel system
LWIR + visible
CRAD-80 / Owl-C
Perimeter surveillance system with LWIR and visible imaging, configurable to application needs.
- Choice of visible, low-light or SWIR imager
- Optics selected for viewing range
- Optional IR illumination and LRF
- Tracking and integration options
Fixed camera
Day/night security camera
Eagle Fixed
Fixed day/night security camera described for perimeter, airport, government and facility security.
- Up to 2 MP and up to 60 fps by resolution
- Day/night ICR and wide dynamic range
- Digital image stabilization and IP66
SWIR imaging
SWIR camera core
Jaguar / Jaguar-HD
InGaAs SWIR imaging cores for security, night vision and selected industrial/scientific applications.
- Jaguar-HD: 1280 × 1024
- 0.6–1.7 µm spectral range for Jaguar-HD
- Camera Link / USB 3.0 options by model
LWIR camera core
Uncooled LWIR
Python / Python-HD
LWIR camera cores for surveillance, driver night sight, firefighting and industrial monitoring.
- Python: 640 × 480, 17 µm
- Python-HD: 1280 × 1024, 12 µm
- On-board NUC, BPR and AGC features by model
Long-range EO/IR
Long-range multi-sensor
Owl MD-860 / Tallon-D69 / Thermovision 50
Long-range day/thermal PTZ surveillance system family described for land, coastal and multi-sensor monitoring.
- MWIR + visible + LRF + tracking options
- Optics selected for required range
- Autonomous scan/detect/warn and integration options
Segment 04
Maritime & coastal surveillance
Maritime monitoring can require long viewing ranges, day/night operation, tracking, stable azimuth/elevation control and integration with a wider surveillance system. Product descriptions include coastal installations and marine deck-mounted use cases.
Coastal surveillanceDeck-mounted systems
Day / thermal imaging
Target tracking
Monitor land/sea approaches and support visual confirmation and tracking.
Consider deck mounting, environmental sealing, stabilization and platform integration needs.
Choose sensor and optics combinations according to the required field of view and detection range.
Featured products
Confirm stabilization and marine environmental requirements for each deployment.
Coastal perimeter system
Visible surveillance
CRAD-0
Perimeter security system described for ground inland or coastal installations.
- Visible channel and IR illumination
- Scan, detect, warn and target tracking
- Land, sea and air monitoring applications
Thermal + visible
Multi-sensor system
CRAD-80 / Owl-C
LWIR and visible perimeter surveillance with optional imager, optics and rangefinder configurations.
- LWIR + visible
- Optional LRF and IR illumination
- Tracking and integration options
Marine / aerial
Short-range multi-sensor
LD-100 / Owl-LD100
Modular system with marine deck-mounted and aerial/ground use cases described in the product information.
- Short-range surveillance
- Autonomous scan, detect and warn
- Target tracking and system integration
Long-range EO/IR
Long-range multi-sensor
Owl MD-860 / Tallon-D69
Long-range day/thermal PTZ surveillance options for coastal and maritime observation scenarios.
- MWIR + visible + LRF + tracking configuration
- Choice of optics for viewing range
- ONVIF-S and integration options as described
Marine deployment suitability, stabilization, corrosion protection and certification depend on the selected configuration and should be confirmed for the target vessel or coastal installation.
Integrated system components
Components for EO/IR Integration
Explore the key modules that can be combined to build mission-specific imaging and tracking solutions. Configuration and compatibility depend on the application, payload, interfaces and platform requirements.
Explore components
Select a module to discuss product options and integration requirements.
SWIR camera core
Camera core
Jaguar / Jaguar-HD
InGaAs-based SWIR camera cores for specialized imaging and integration projects.
- Jaguar: compact SWIR core
- Jaguar-HD: 1280 × 1024 array
- SWIR band: 0.6–1.7 µm for Jaguar-HD
Thermal camera core
Thermal imaging
Viper / Python
MWIR and LWIR camera technologies for thermal imaging applications; confirm suitability for the intended space environment.
- Viper: cooled MWIR camera family
- Python: uncooled LWIR core
- Camera interfaces vary by model
Imaging modules
Imaging
Cores
Compact visible and infrared camera cores for integration into OEM products, payloads and surveillance systems.
- Day / Visible
- SWIR, MWIR and LWIR options
- Integration-focused interfaces
Stabilization
Stabilized mounting

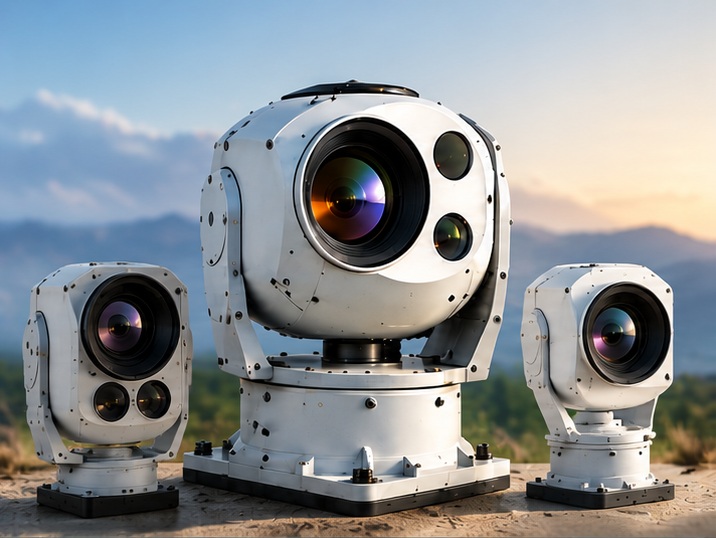

Gimbals
Gimbal assemblies for pointing, aiming and stabilization of camera payloads on suitable platforms.
- Payload and camera mounting
- Azimuth / elevation integration
- Platform-specific control interfaces
Mechanical support
Mounting hardware

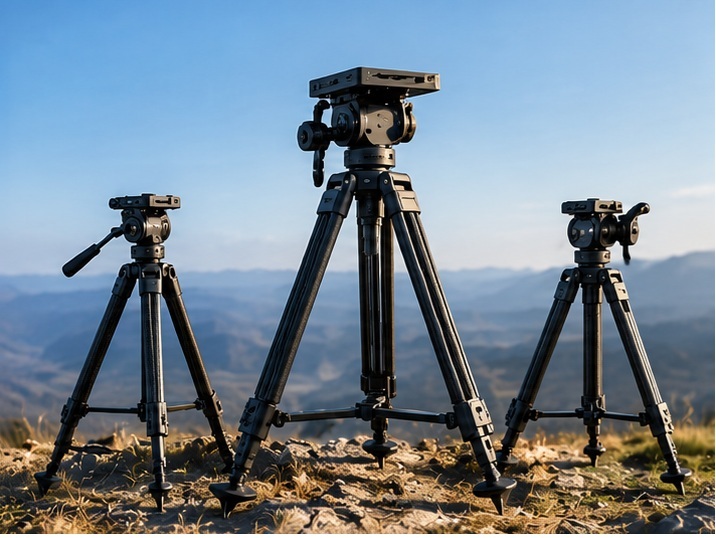

Tripods
Support and mounting solutions for portable or stationary camera and observation setups.
- Stable equipment placement
- Mounting and alignment support
- Application-dependent configuration
Target tracking
Tracking systems

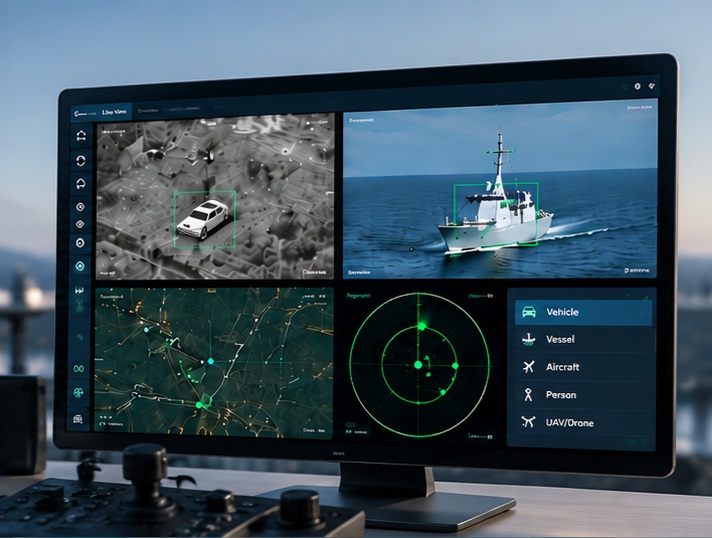

Tracker
Tracking software and system modules for detecting, acquiring and following targets in supported imaging systems.
- Automatic and manual tracking workflows
- Integration with day and thermal video
- Camera and platform control integration
Have a segment-specific requirement?
Share your range, field of view, spectral band, platform and interface requirements with our team.
